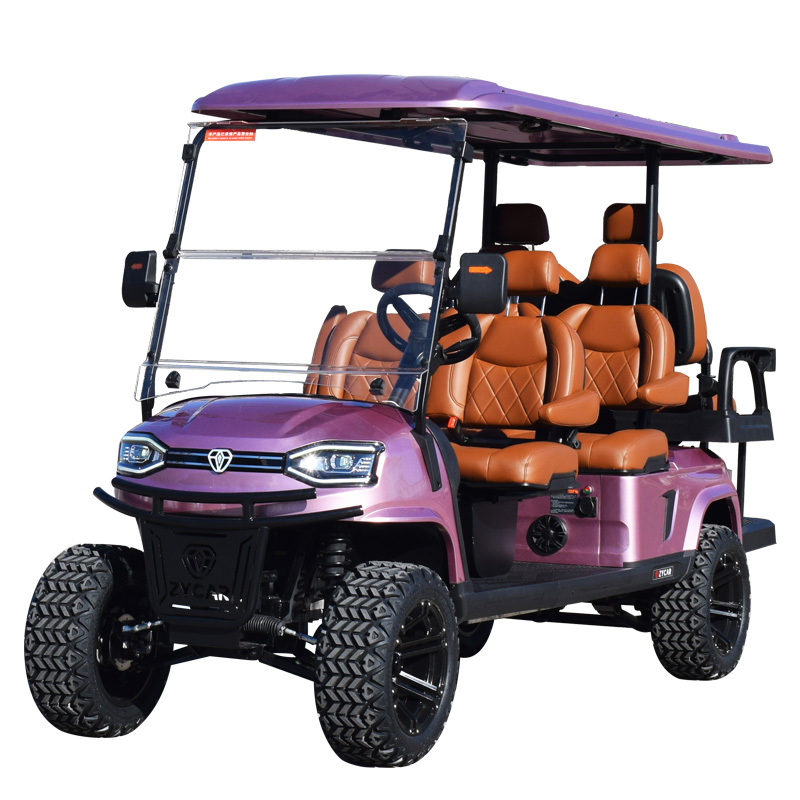

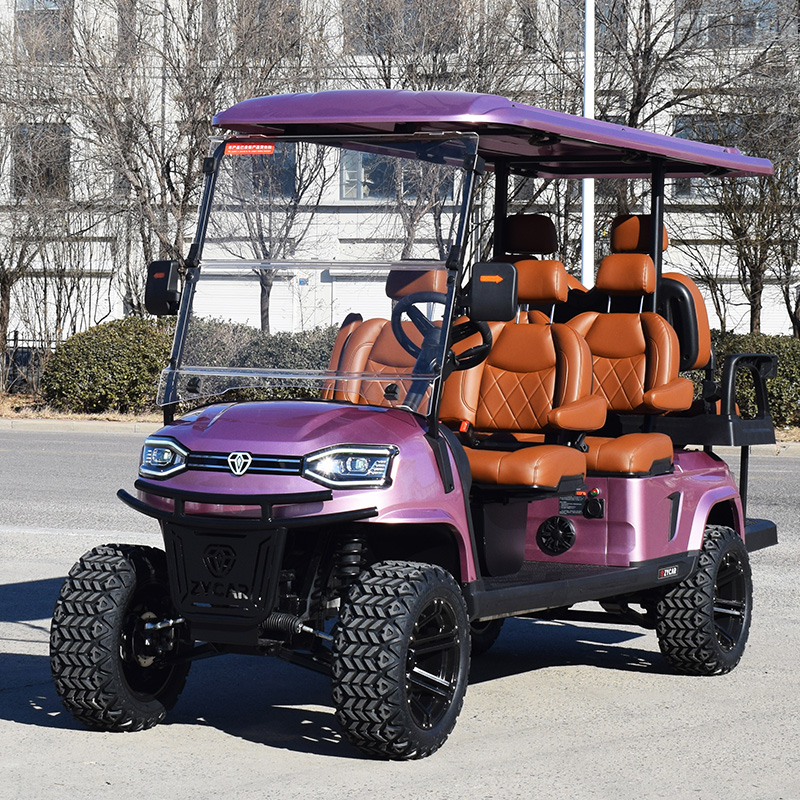

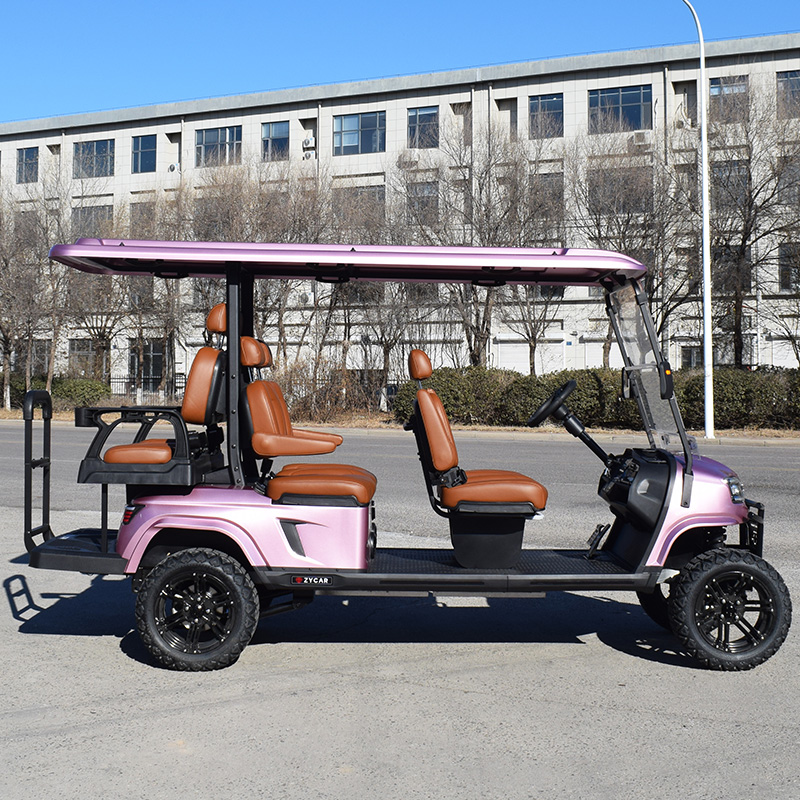

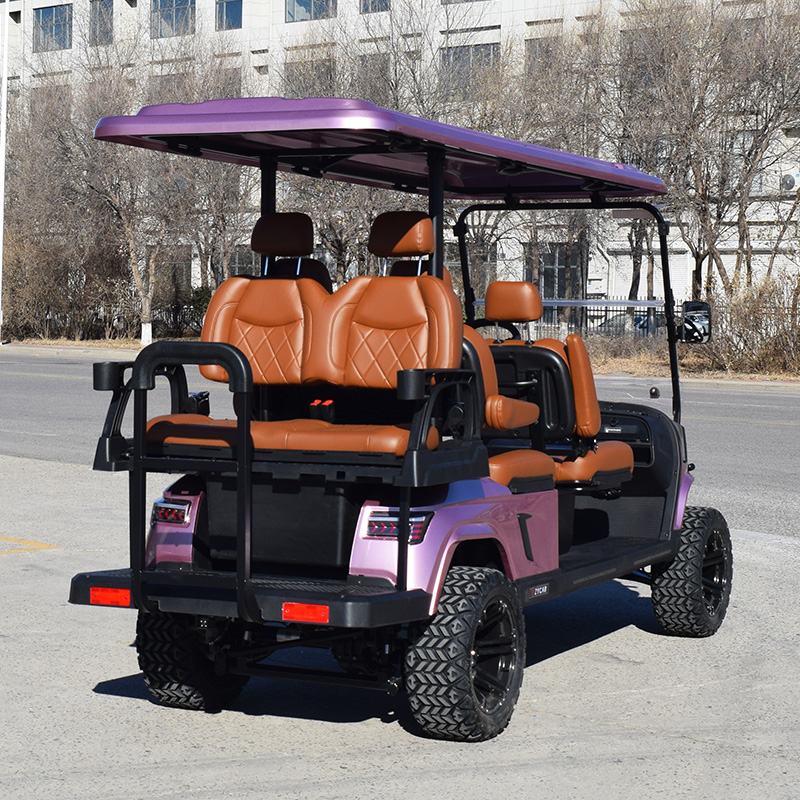

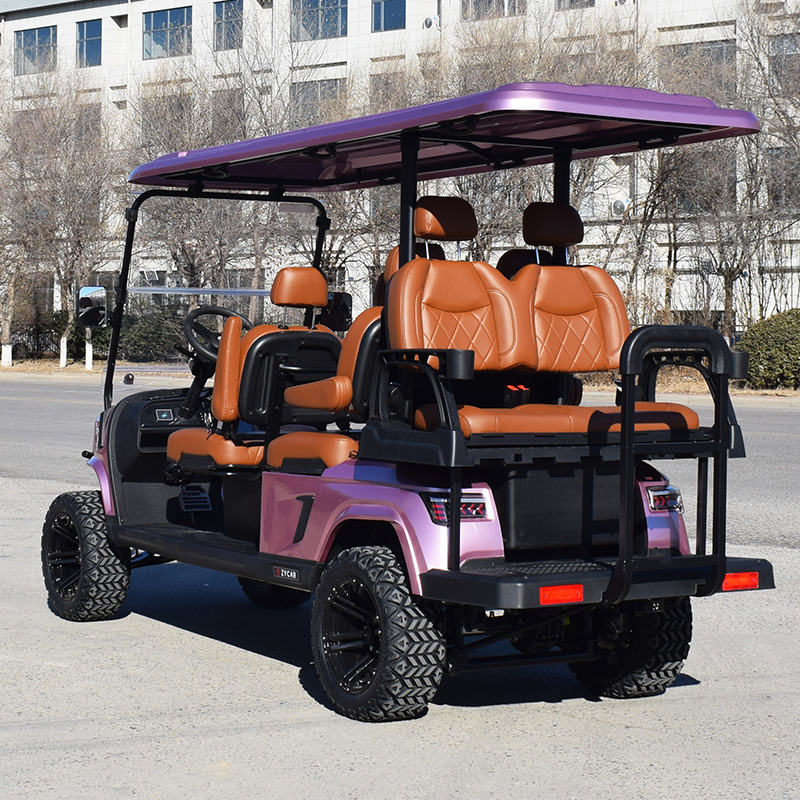

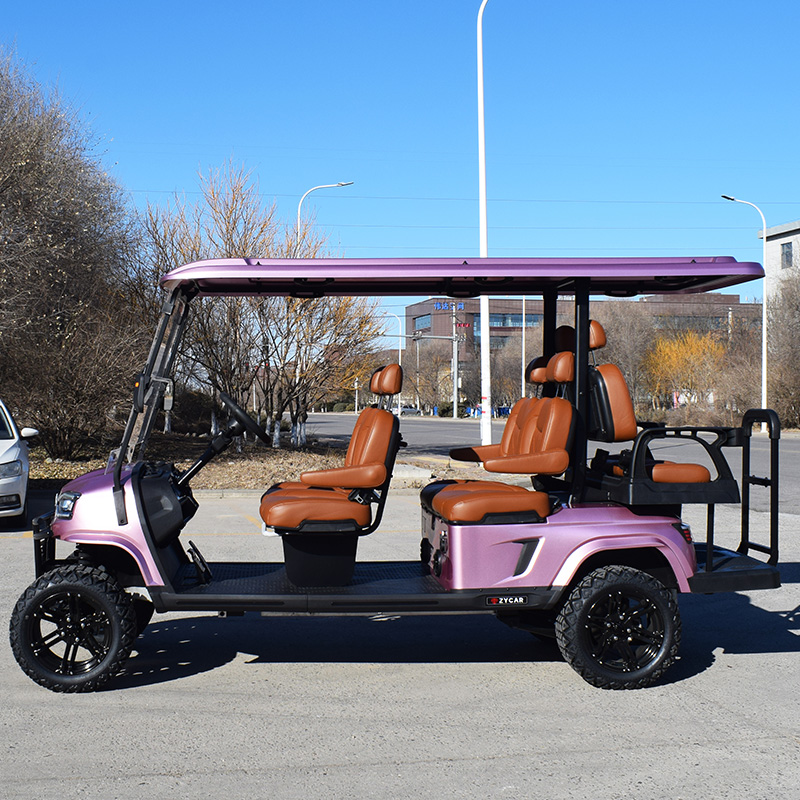

6 seater utility golf cart K4C pink
Collection
|

6 seater utility golf cart K4C pink

Type： electric golf cart
Size： 3770*1220*1965mm
Model： K4C
Series： K series
 Contact us
product warranty
正品保证
快速发货
Product Details
ModelK4C
Lithium BatteryMotor5kw AC motor
ControllerA5/Enpower AC controller
Battery48V 105AH/48V 150AH
/72V 150AH
Chargeron board 48V/35A
on board 72V/40A
Lead Acid BatteryMotor5kw AC motor
ControllerEnpower 3818 AC   Controller
48V 400A
BatteryMaintenance Free Gel Battery   6*8V 150AH/8*6V 200AH
Chargeron board 48V/25A
Brakes4 Wheels Hydraulic Disc Brake &Electromagnetic brake
Range60-80 km
Max.Speed24km/h(can be adjusted to 35km/h)
Minimum Turning Radius4.7m
Minimum Ground Clearance105mm
Max.Climbing Ability15%
Overall Dimensions3770*1220*1965mm
Cart's WeightLithium Battery640kg
Lead Acid Battery750kg
Wheelbase2525mm
Front   Wheel Tread880mm
Rear Wheel Tread998mm
Brake Distance4m
Tires and RimAluminum hub 215/35-12
